Analyzing Metrics, Logs and Traces

What it is

Collecting telemetry is only useful if you can answer questions with it. Is the service healthy? What got slower after the deployment? Which dependency is failing? This topic covers reading infrastructure performance indicators, analyzing usage and application performance, following a request across services with distributed tracing, and writing basic Kusto Query Language (KQL) queries.

How it works

Infrastructure performance indicators

Use Metrics Explorer to chart a metric with an aggregation (average, min, max, sum, count), split by a dimension (instance, region) and filter. Dynamic thresholds learn normal patterns. VM insights and Container insights show performance and health at a glance, including node pressure and pod restarts in AKS. The "four golden signals" give a useful checklist: latency, traffic, errors and saturation.

Usage and application performance

Application Insights gives views for both.

Compare the before and after of a release using release annotations, and judge against a baseline, such as the same time last week. Look at percentiles (for example the 95th) as well as averages, because averages hide slow tails.

Distributed tracing

In a system of many services, one user request touches several of them. Distributed tracing follows that request end to end.

• Each request carries a trace identifier, passed between services in the W3C Trace Context header (traceparent). Application Insights stores it as operation_Id, with parent and child relationships between operations.
• The end-to-end transaction view shows a request as a timeline: which service, which dependency call, how long each took and where an exception happened.
• Give each component a distinct cloud role name so the Application Map and traces show readable service names.
• Telemetry is correlated automatically by the SDKs or the OpenTelemetry distro for supported libraries. Custom code that creates its own threads or uses unsupported protocols may need manual propagation.
• Sampling keeps a share of telemetry. Adaptive sampling keeps related items together so traces stay whole.

Kusto Query Language (KQL)

KQL queries read from a table and pass the result through a series of operators separated by the pipe character.

Failed request rate over time (in the Application Insights Logs view, tables are named requests, dependencies, exceptions, traces):

requests
| where timestamp > ago(1h)
| summarize failed = countif(success == false), total = count() by bin(timestamp, 5m)
| extend failureRate = 100.0 * failed / total
| render timechart

Slowest operations by 95th percentile:

requests
| where timestamp > ago(24h)
| summarize p95 = percentile(duration, 95), calls = count() by name
| top 10 by p95 desc

CPU by computer from the Perf table in a Log Analytics workspace:

Perf
| where ObjectName == "Processor" and CounterName == "% Processor Time" and InstanceName == "_Total"
| summarize avg(CounterValue) by Computer, bin(TimeGenerated, 5m)

Follow one request across services:

union requests, dependencies, exceptions
| where operation_Id == "<trace id>"
| order by timestamp asc

In a Log Analytics workspace the same Application Insights data is in tables named AppRequests, AppDependencies, AppExceptions and AppTraces, and the time column is TimeGenerated. Prefer has over contains for string matching, because it is faster, and filter by time first.

From analysis to action

• Save a query as a log alert so it runs on a schedule and notifies an action group.
• Pin charts to a dashboard or a workbook for a shared view.
• Use findings to adjust autoscale, size VMs, tune queries or fix a slow dependency.
• Feed results back into the pipeline: gates that check alerts, and a post deployment verification that queries error rate.

A worked scenario

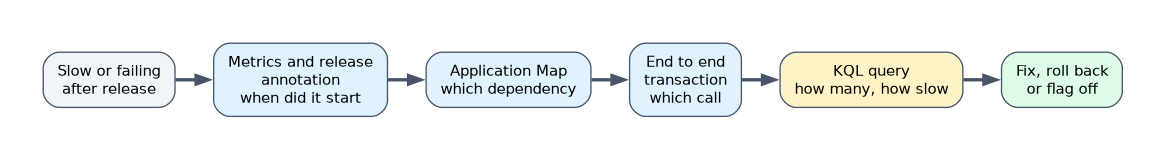

After a Tuesday release, support reports that checkout is slow. The engineer opens Application Insights, sees from the release annotation that response time doubled right after deployment, and the Application Map shows a red dependency on the payment service. In the end-to-end transaction view, one call to the payment API takes six seconds. A KQL summarize percentile(duration, 95) by name confirms it affects only that operation. The team rolls back the payment change and saves the query as an alert.
