Hybrid Search and RAG Evaluation with A/B Testing

What it is

Hybrid search runs a keyword query and a vector query together and merges the results, so exact terms and meaning both count. A semantic ranker can then re-order the top results. To know whether a change really improves a RAG system, you measure it with relevance metrics offline and confirm with an A/B test online.

How it works

Why hybrid

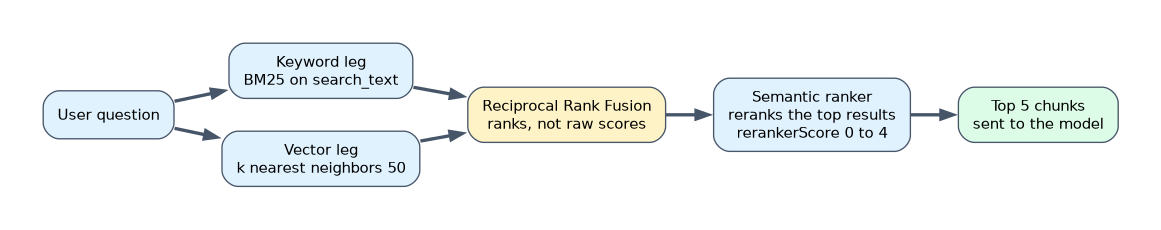

In Azure AI Search a single request can carry a text query and one or more vector queries. The separate result lists are fused with Reciprocal Rank Fusion (RRF), which rewards documents that rank well in either list and best of all in both. Because RRF uses ranks, not raw scores, keyword and vector scores do not need to be on the same scale.

from azure.search.documents import SearchClient
from azure.search.documents.models import VectorizedQuery

vector_query = VectorizedQuery(
    vector=query_embedding,
    k_nearest_neighbors=50,
    fields="contentVector",
)

results = search_client.search(
    search_text="reset vpn token",
    vector_queries=[vector_query],
    query_type="semantic",
    semantic_configuration_name="default",
    select=["title", "chunk"],
    top=5,
)

The search_text drives the keyword leg, vector_queries the vector leg, and query_type="semantic" with a semantic configuration adds reranking.

The semantic ranker

The semantic ranker applies a language model trained for relevance to the top results from the first stage and re-orders them. It adds a @search.rerankerScore (0 to 4), and can return captions and answers. It improves ranking for natural language questions, particularly when wording differs from the document. You first retrieve broadly (for example the top 50), then rerank and pass only the best few to the model.

Optimizing hybrid search

• Choose k for the vector leg and top for the final result deliberately.
• Weight the vector query if keyword matches should count less (or more).
• Restrict candidates with filters on metadata.
• Use scoring profiles to boost fields such as title.
• Pick a language analyzer suited to the content.
• Compare vector only, keyword only, hybrid and hybrid with reranking on the same labelled queries; the best mix depends on the data.

Relevance metrics for retrieval and RAG

Evaluate retrieval and generation separately. Poor recall means search is the problem; good retrieval but low groundedness points to the prompt or model. The azure-ai-evaluation package offers evaluators for these (see the earlier chapter), and labelled queries with known relevant chunks let you compute precision, recall, MRR and NDCG yourself.

A/B testing

Offline metrics predict; an A/B test confirms with real users.

1. Hypothesis: change a single thing (for example "hybrid with reranker beats vector only").
2. Offline gate: the variant must beat the baseline on the evaluation set and pass safety checks.
3. Split traffic: route a share of users to B using a feature flag service such as Azure App Configuration, keeping each user in the same group.
4. Measure: online signals such as thumbs up or down, task completion or escalation rate, plus latency and token cost, from your telemetry.
5. Decide: run long enough for a meaningful sample, check significance, watch guardrail metrics (safety, latency), then roll out or revert.

An alternative to full exposure is shadow testing, which runs B on copies of live requests without showing its answers.

A worked example

Searches for "ERR_4471" fail under vector only search. The team switches to hybrid, which fixes exact codes, and adds the semantic ranker, which lifts NDCG at 5 from 0.61 to 0.70 offline. An A/B test sends 10 percent of users to the new pipeline; thumbs up rises while p95 latency increases by 120 ms, which the product owner accepts.

How the exam asks about this

• "Users search by exact error codes and by natural language." Hybrid search.
• "Improve ordering of the top results without changing the index." Add the semantic ranker.
• "Prove a retrieval change helps real users." A/B test with a feature flag and success metrics.
