MikroTik MTCUME Practice Exam

• A. To monitor active PPP sessions in real time
• B. To configure PPP encryption algorithms
• C. To set default connection parameters such as local/remote addresses and DNS for PPP connections Correct answer
• D. To define firewall rules for PPP connections

Option C is correct because a PPP Profile in MikroTik RouterOS defines default connection parameters — including Local Address, Remote Address, DNS Server, Rate Limit, and session timeouts — that are applied to all PPP connections using that profile. Options A, B, and C describe other functions: session monitoring is under PPP Active, encryption is a profile sub-setting, and firewall rules are configured under /ip firewall.

• A. /system identity
• B. /ip address
• C. /ppp secret Correct answer
• D. /ip firewall filter

Option C is correct because /ppp secret is where PPP client credentials (username, password, service type, and optional per-user overrides) are configured. Options B, C, and D are unrelated menus — firewall filter handles packet filtering, system identity sets the router's hostname, and ip address manages interface IP assignments.

• A. True Correct answer
• B. False

A PPP Secret's Remote Address takes precedence over the PPP Profile's Remote Address. MikroTik applies a hierarchy where Secret-level settings override Profile-level settings, allowing administrators to assign per-user static addresses while the Profile provides a default pool for other users.

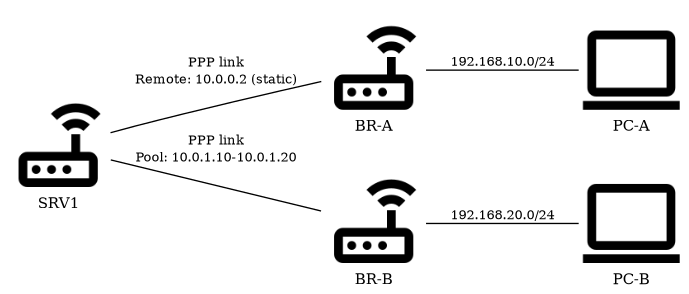

• A. BR-A's link uses IP Pool 10.0.1.10-10.0.1.20, while BR-B's Secret has a static Remote Address
• B. BR-A's PPP Secret has a static Remote Address (10.0.0.2), while BR-B's Profile draws from IP Pool 10.0.1.10-10.0.1.20 Correct answer
• C. The 192.168.10.0/24 network behind BR-A is statically routed, which fixes the PPP address
• D. Both BR-A and BR-B draw from the same IP Pool, but BR-A connects first

Option B is correct because BR-A's PPP Secret has a static Remote Address (10.0.0.2), so it receives the same address on every reconnect regardless of pool state. BR-B's Profile instead assigns from IP Pool 10.0.1.10-10.0.1.20, so its address can change between connections depending on which addresses are free. Options A and D reverse or misread which link uses the pool, and Option C is wrong because a statically routed LAN subnet has no effect on the PPP address assigned to the link itself.

• A. TCP port 1723 Correct answer
• B. UDP port 500
• C. TCP port 443
• D. UDP port 1701

Option A is correct because PPTP uses TCP port 1723 for its control connection to manage tunnel setup, maintenance, and teardown. UDP port 500 is used by IKE for IPsec, TCP port 443 is HTTPS/SSTP, and UDP port 1701 is used by L2TP.

• A. TCP port 443
• B. UDP port 1701 Correct answer
• C. TCP port 1723
• D. UDP port 500

Option B is correct because L2TP uses UDP port 1701 by default for both its control and data channels. TCP port 1723 is used by PPTP, TCP port 443 is HTTPS/SSTP, and UDP port 500 is used by IKE for IPsec key exchange.

• A. True Correct answer
• B. False

PPTP uses two channels: a TCP connection on port 1723 for control messages (session setup, teardown, and management) and GRE (IP protocol 47) for encapsulating the actual PPP data frames. This dual-channel design is a defining characteristic of the PPTP protocol.

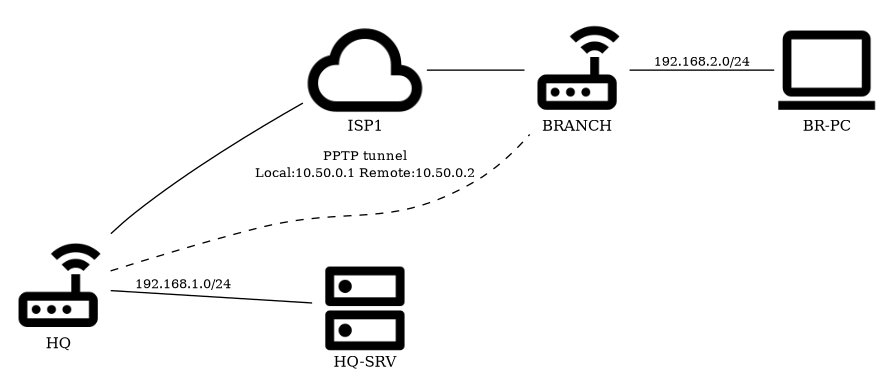

• A. A masquerade NAT rule on HQ for the tunnel interface
• B. A static route: dst-address=192.168.1.0/24 gateway=10.50.0.1 Correct answer
• C. Nothing further - the PPTP tunnel automatically advertises each side's LAN route
• D. A static route: dst-address=192.168.1.0/24 gateway=192.168.2.1

Option B is correct because a PPP-type tunnel only creates a route for the tunnel's own point-to-point addresses; reaching a LAN on the far side needs an explicit static route pointing at the remote tunnel address (10.50.0.1), which is HQ's side of the link. Option D is wrong because 192.168.2.1 is BRANCH's own LAN gateway, not a path toward HQ. Option C is wrong because PPTP tunnels never advertise routes automatically, and Option A (NAT) has nothing to do with basic reachability between the two LANs.

• A. Peer-to-Peer Protocol over Encryption
• B. Point-to-Point Protocol over EIGRP
• C. Point-to-Point Protocol over Ethernet Correct answer
• D. Point-to-Point Protocol over EoIP

Option C is correct because PPPoE stands for Point-to-Point Protocol over Ethernet, a protocol that encapsulates PPP frames within Ethernet frames. The other options contain fabricated expansions that do not represent any real protocol.

• A. PADO (PPPoE Active Discovery Offer)
• B. PADS (PPPoE Active Discovery Session-confirmation)
• C. PADI (PPPoE Active Discovery Initiation) Correct answer
• D. PADR (PPPoE Active Discovery Request) Correct answer

Options C and D are correct because during PPPoE discovery the client sends the PADI broadcast to locate Access Concentrators and then sends the PADR unicast to select a specific server. PADO and PADS are sent by the server (Access Concentrator) in response.

• A. To replace VLAN tagging on trunk ports
• B. To provide QoS prioritization for bridged traffic
• C. To encrypt Ethernet traffic between two routers
• D. To create a Layer 2 tunnel over an IP network Correct answer

Option D is correct because EoIP creates a Layer 2 (Ethernet) tunnel over an IP network, allowing Ethernet frames to be transported transparently between remote sites. This enables bridging of remote LAN segments across Layer 3 infrastructure. EoIP does not provide encryption, replace VLANs, or offer QoS prioritization.

• A. EoIP tunnels provide built-in encryption for all traffic
• B. EoIP operates at Layer 3 and can only carry IP packets
• C. EoIP is a MikroTik proprietary protocol that uses GRE Correct answer
• D. Each EoIP tunnel requires a unique Tunnel ID per endpoint pair Correct answer

Options C and D are correct because EoIP is a MikroTik proprietary protocol that encapsulates Ethernet frames using GRE, and each EoIP tunnel requires a unique Tunnel ID that must match between the two endpoints. EoIP does not provide built-in encryption (A), and it operates at Layer 2, carrying full Ethernet frames including non-IP protocols (B).

• A. /interface ipsec
• B. /ip ipsec Correct answer
• C. /system ipsec
• D. /routing ipsec

Option B is correct because all IPsec configuration in MikroTik RouterOS is found under the /ip ipsec menu, including peers, policies, proposals, and installed SAs. The other menu paths (/routing, /system, /interface) do not contain IPsec settings.

• A. An IPsec Peer with matching authentication settings Correct answer
• B. A bridge group for IPsec interfaces
• C. An IPsec Policy defining the traffic selectors and encryption action Correct answer
• D. A GRE tunnel interface

Options A and C are correct because a basic site-to-site IPsec tunnel requires an IPsec Peer with matching authentication settings (pre-shared key, exchange mode, DH group) on both routers, and an IPsec Policy on each side defining the traffic selectors and encrypt action. A GRE tunnel (D) is optional and separate from IPsec, and a bridge group (B) is not required for IPsec.

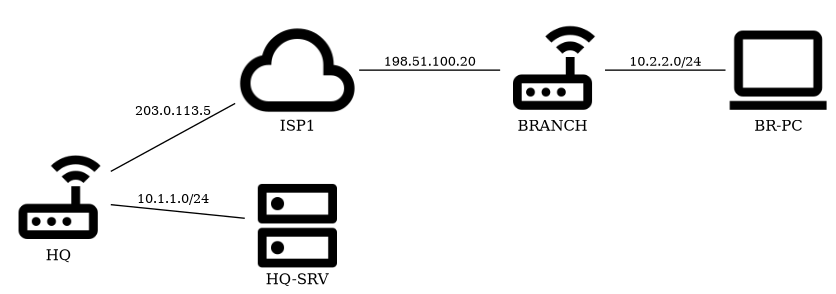

• A. 10.2.2.0/24 - the LAN behind BRANCH
• B. 198.51.100.20 - BRANCH's public address, the remote peer HQ negotiates with Correct answer
• C. 10.1.1.0/24 - the LAN behind HQ
• D. 203.0.113.5 - HQ's own public address

Option B is correct because an IPsec Peer's Address field identifies the remote peer HQ is negotiating with, which is BRANCH's public address, 198.51.100.20. Options A and C are wrong because those are LAN subnets behind each router, not peer addresses - those belong in the IPsec Policy's src/dst-address fields instead. Option D is wrong because a Peer entry needs the remote side's address, not HQ's own.

• A. /system hotspot
• B. /tool hotspot
• C. /interface hotspot
• D. /ip hotspot Correct answer

Option D is correct because the HotSpot Setup wizard and all HotSpot configuration is found under /ip hotspot in MikroTik RouterOS. The other menu paths (/system hotspot, /interface hotspot, /tool hotspot) do not exist in RouterOS.

• A. MAC address authentication Correct answer
• B. HTTP CHAP (challenge-response in the browser) Correct answer
• C. LDAP direct bind
• D. WPA2-Enterprise 802.1X

Options B and A are correct because MikroTik HotSpot supports HTTP CHAP, which uses a challenge-response mechanism in the browser to hash the password before sending, and MAC address authentication, which automatically authenticates devices based on their hardware address. WPA2-Enterprise 802.1X (D) is a wireless security feature separate from HotSpot, and LDAP direct bind (C) is not a native HotSpot login method.

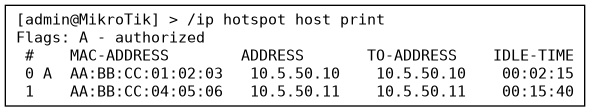

• A. That host belongs to a different HotSpot server, so the flag does not apply to it
• B. That host has not completed the HotSpot login, so it cannot pass traffic beyond the login page Correct answer
• C. That host is using a static IP-binding bypass entry, so no flag is needed
• D. That host's idle-time has exceeded the timeout, so it is about to be reassigned a new address

Option B is correct because the A flag specifically marks a host as authorized after completing the HotSpot login; a host without it, like 10.5.50.11, is still sitting at the login page and hasn't been granted access yet. Option C is wrong because a bypassed host would appear in the ip-binding list, not simply be missing a flag here. Options A and D invent explanations (a different server, an idle timeout) that the output gives no evidence for.

• A. To manage routing tables across multiple routers
• B. To encrypt all network traffic between clients and the server
• C. To centralize authentication, authorization, and accounting for network users Correct answer
• D. To assign IP addresses via DHCP

Option C is correct because RADIUS (Remote Authentication Dial-In User Service) provides centralized Authentication, Authorization, and Accounting (AAA) for network users, allowing a single server to manage access for multiple network access devices. It does not assign IP addresses via DHCP (B), encrypt traffic (C), or manage routing tables (D).

• A. True
• B. False Correct answer

RADIUS uses UDP, not TCP, as its transport protocol. Standard RADIUS authentication uses UDP port 1812 and accounting uses UDP port 1813. UDP was chosen for RADIUS because it provides simpler, faster communication suitable for the request-response nature of authentication exchanges.
